Product Specifications

• SERIES 200 Hinge for thicker doors - 19mm to 35 mm

• When a greater opening angle is required

• SILENTIA+ 2nd generation piston soft-closing in the cup

• RAPDIO Steel Dowel-Fix (45 x 9.5 Drill Pattern)

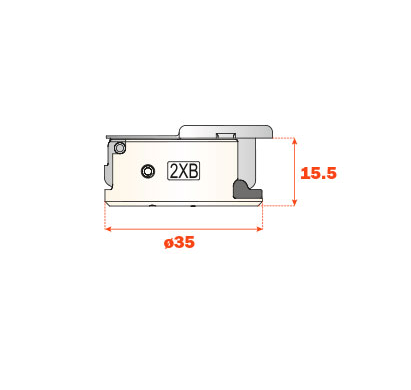

• 15.5 mm deep opening metal cup

• 94º Opening

• Possible drilling distance on the door (K), from 3 to 9 mm

• Compatible with all Series 200 mounting plates and with all DOMI® snap-on mounting plates

Packaging Available: (Prices are ex.VAT)

Individual Piece/s: €4.80
Trade Pack of 50 Pieces: €132.50 (€2.65 per piece)
Industrial Pack of 300 Pieces: €525.00 (€1.75 per piece)
Pallet Quantities: Submit Enquiry
